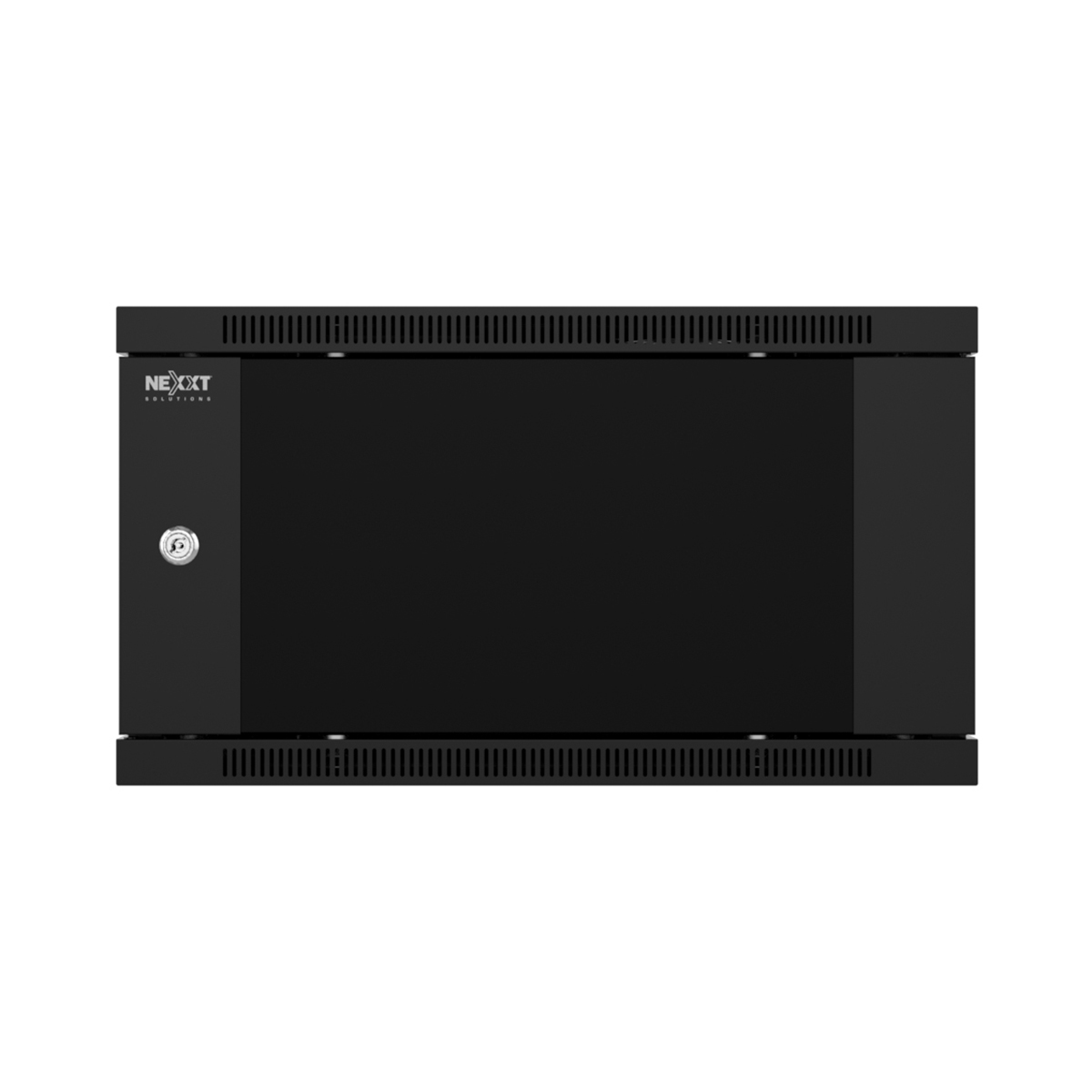

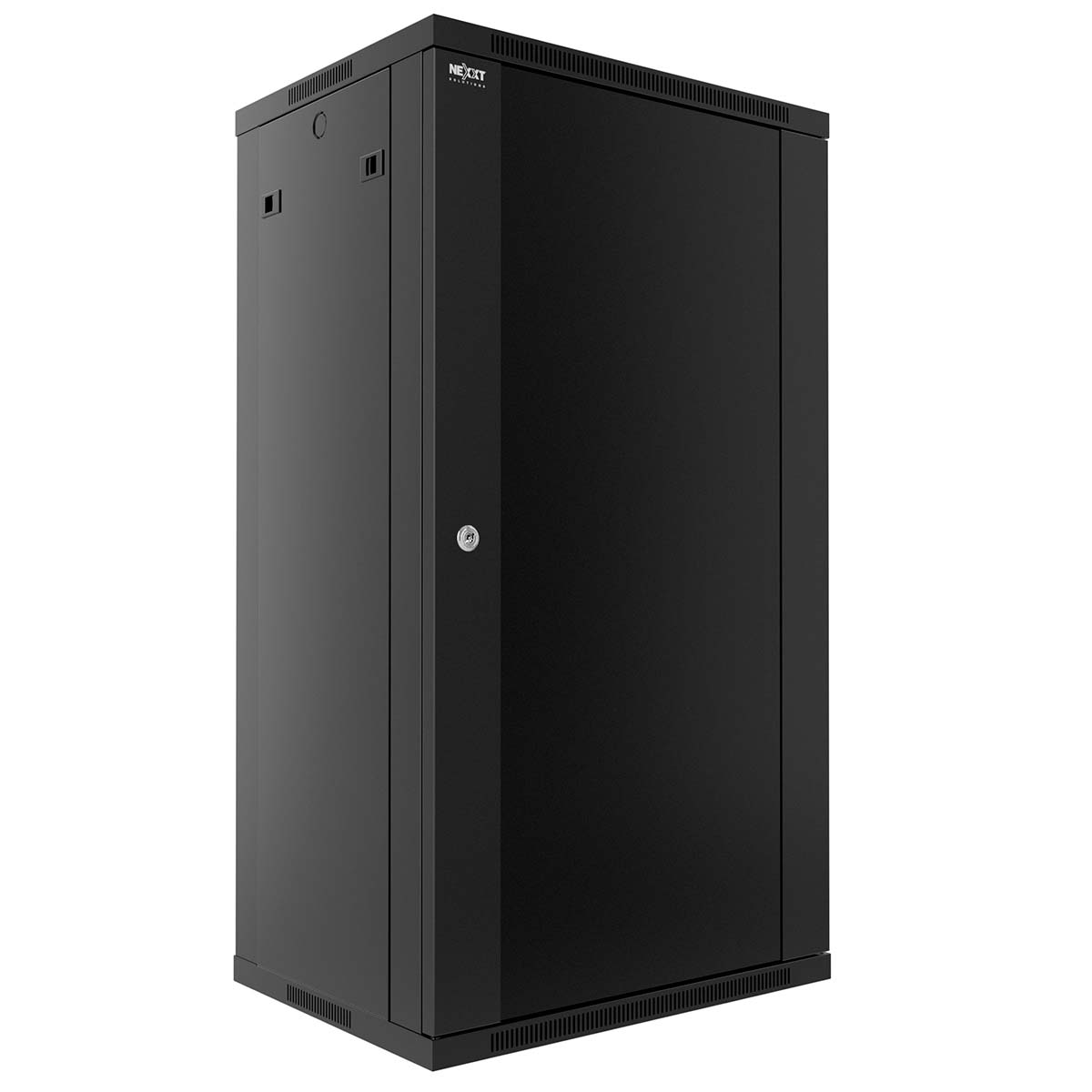

Fixed SKD Wall Mount Enclosure

Fixed wall-enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKD04U45FXBK
  • Rack Units: 12U , 15U , 18U , 4U , 9U , 6U
  • Size: 600x450mm
  • Style: Wall Fixed
  • Max. Load Capacity: 35kg/77lbs

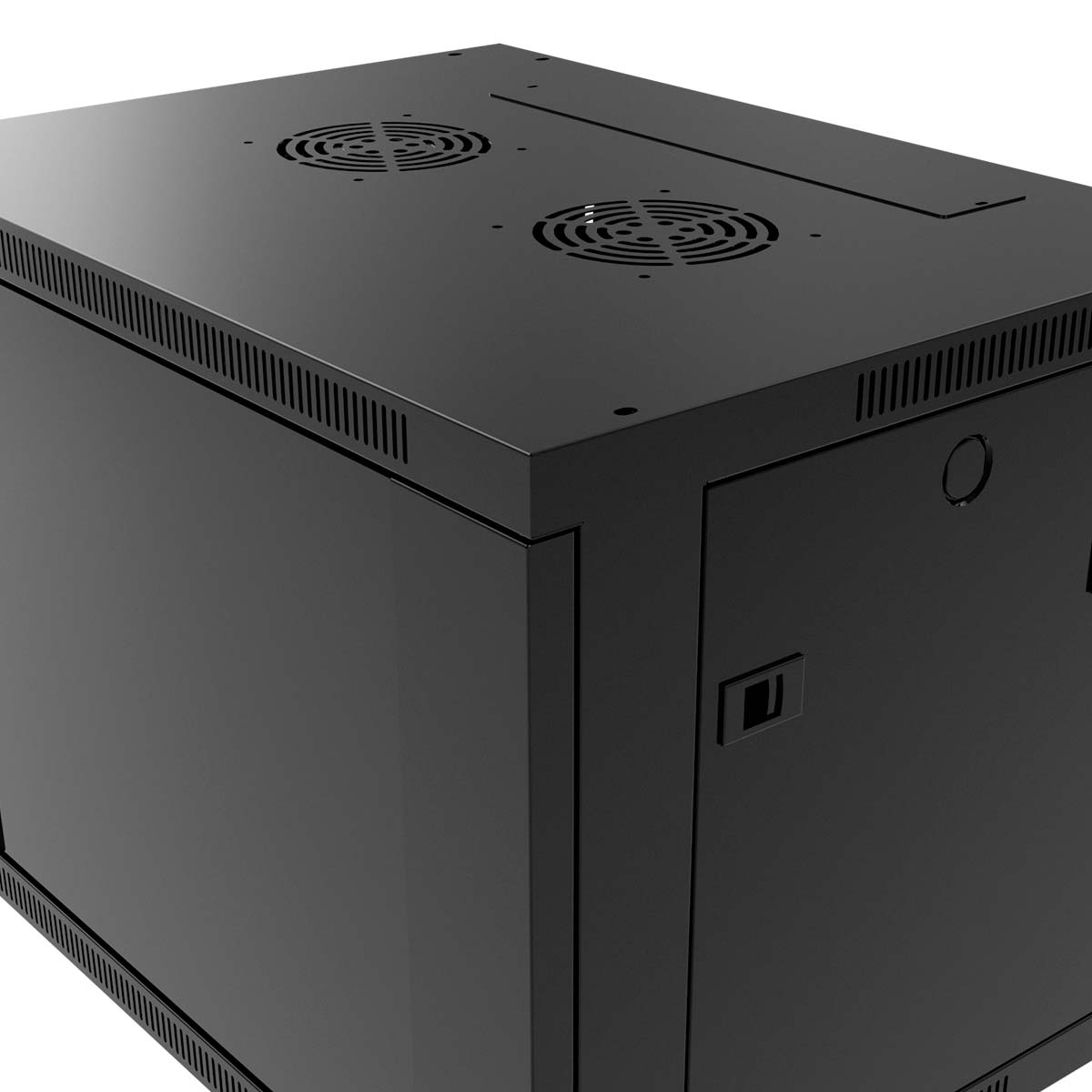

  • Fans: 1 Slot / 1 Fan

Fixed SKD Wall Mount Enclosure

Fixed wall-enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKDXXU45FXBK
  • Available to accommodate EIA industry-standard 19-inch panels
  • Follows ANSI/TIA/EIA-568 C.2 manufacturing standards and meets ANSI/EIA RS-310-DIt also complies with IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
  • Single section structure, the turning angle of front door is above 180 degree
  • 19-inch standard installation provides easy access for management and maintenance
  • One layer of electrostatic coating protects it against humidity, rust, scratches, peeling, strong acid and alkaline erosion
  • Black epoxy-polyester hybrid powder paint
  • For indoor use only, in environmentally controlled areas, may not be used outdoors, in industrial or harsh environments or in plenum spaces
  • Use with shelves or rails to support small modular network or voice switches routers and other network equipment Universal horizontal cable manager
  • Horizontal power strips can be fit

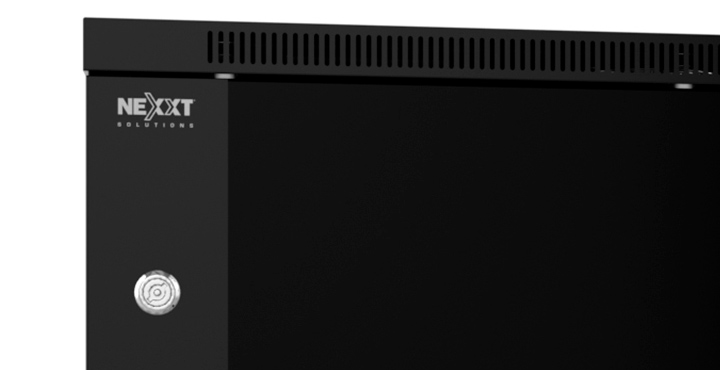

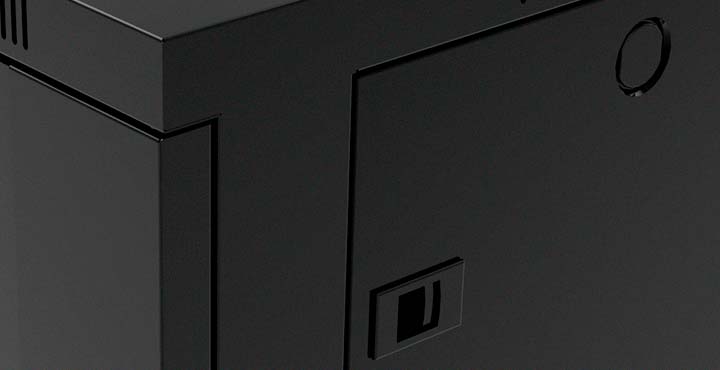

  • Front glass door and side panels with key lock sets
  • Pathway for routing cables located on the top and bottom panels
  • Adjustable vertical rails
  • Attached grounding bolts
  • Protection grade: IP20
  • Max load: 35kg/77lbs

Fixed SKD Wall Mount Enclosure

Fixed wall-enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKDXXU45FXBK

Fixed wall-enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

Nexxt Solutions semi-knocked down (SKD) fixed wall mount enclosures are ideal for installations were space is limited or where a full cabinet is not required. Our wall mount enclosures are the perfect solution for any 19-inch installation. Commonly used with all patch panels and cable management panels to give installations an organized, protected and professional appearance. These wall mount enclosures come as semi-knock down version. Available with 4, 6, 9, 12, 15 and 18 rack spaces.

Color

Structure type

Semi-knocked down (SKD)


Mounting type

Wall mounted


Access type

Fixed
