Nexxt - SKD wall mount enclosure

General Description
Highlights
Overview
Downloads

SKD Wall Mount Enclosure

Cabinets & Racks / Telecom. Wall Cabinets

General Description
Highlights
Overview
Downloads

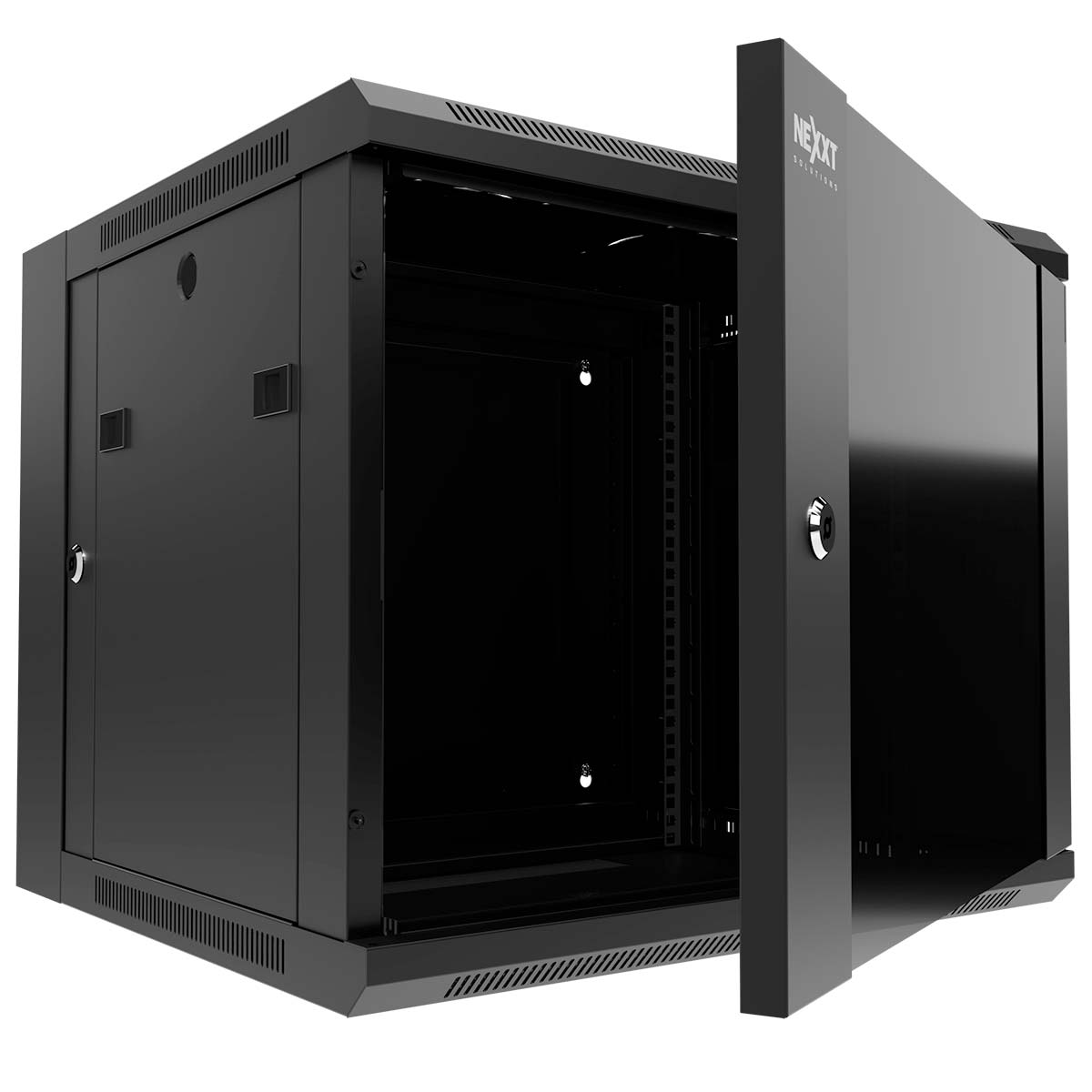

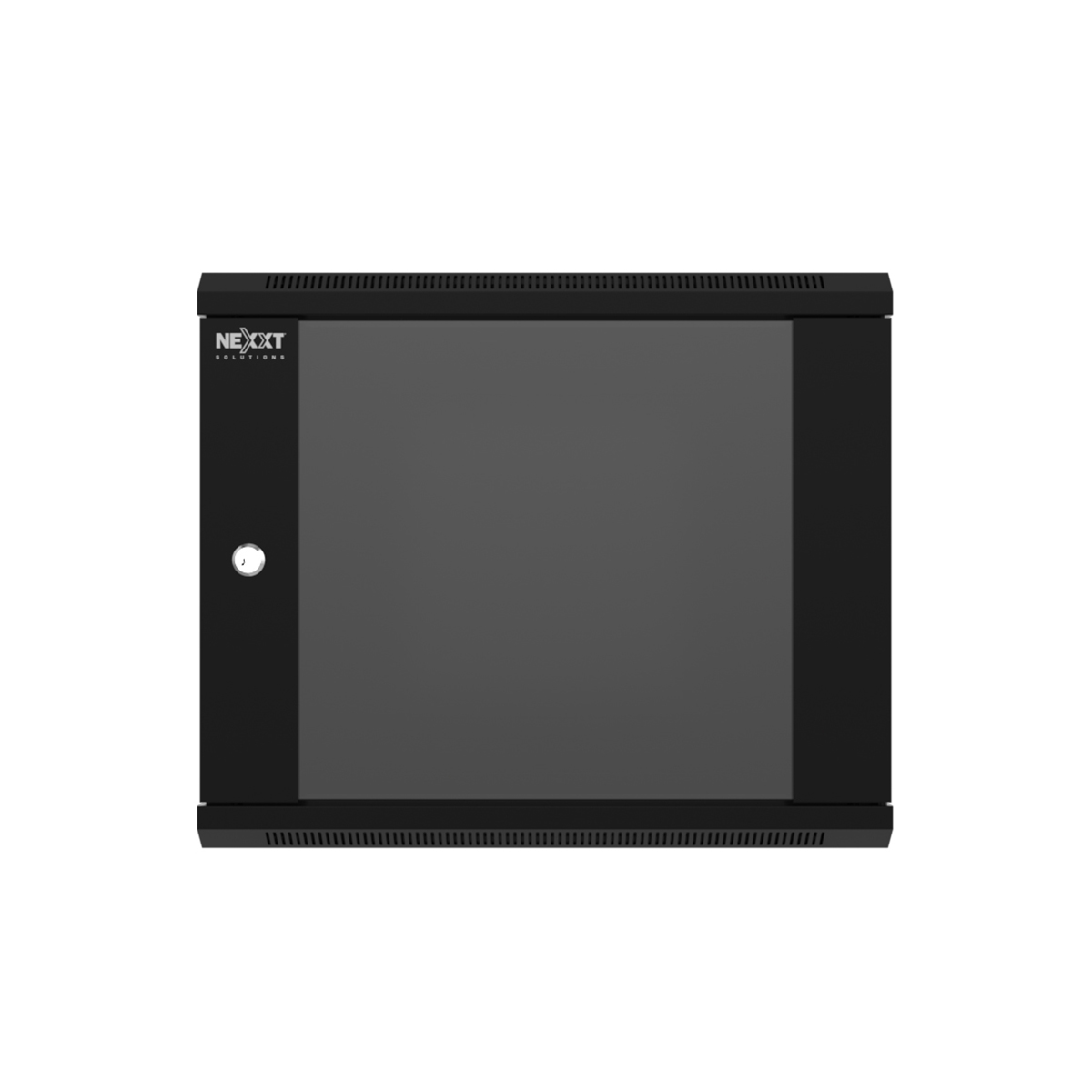

SKD Wall Mount Enclosure

Wall mount enclosures 6U, 9U, 12U, 15U and 18U, fixed, semi-knocked down

MPN: PCRWESKD06U55BK

Rack Units: 12U , 15U , 18U , 9U , 6U

Size: 600x550mm

Style: Wall Pivotable

Max. Load Capacity: 25kg/55lbs

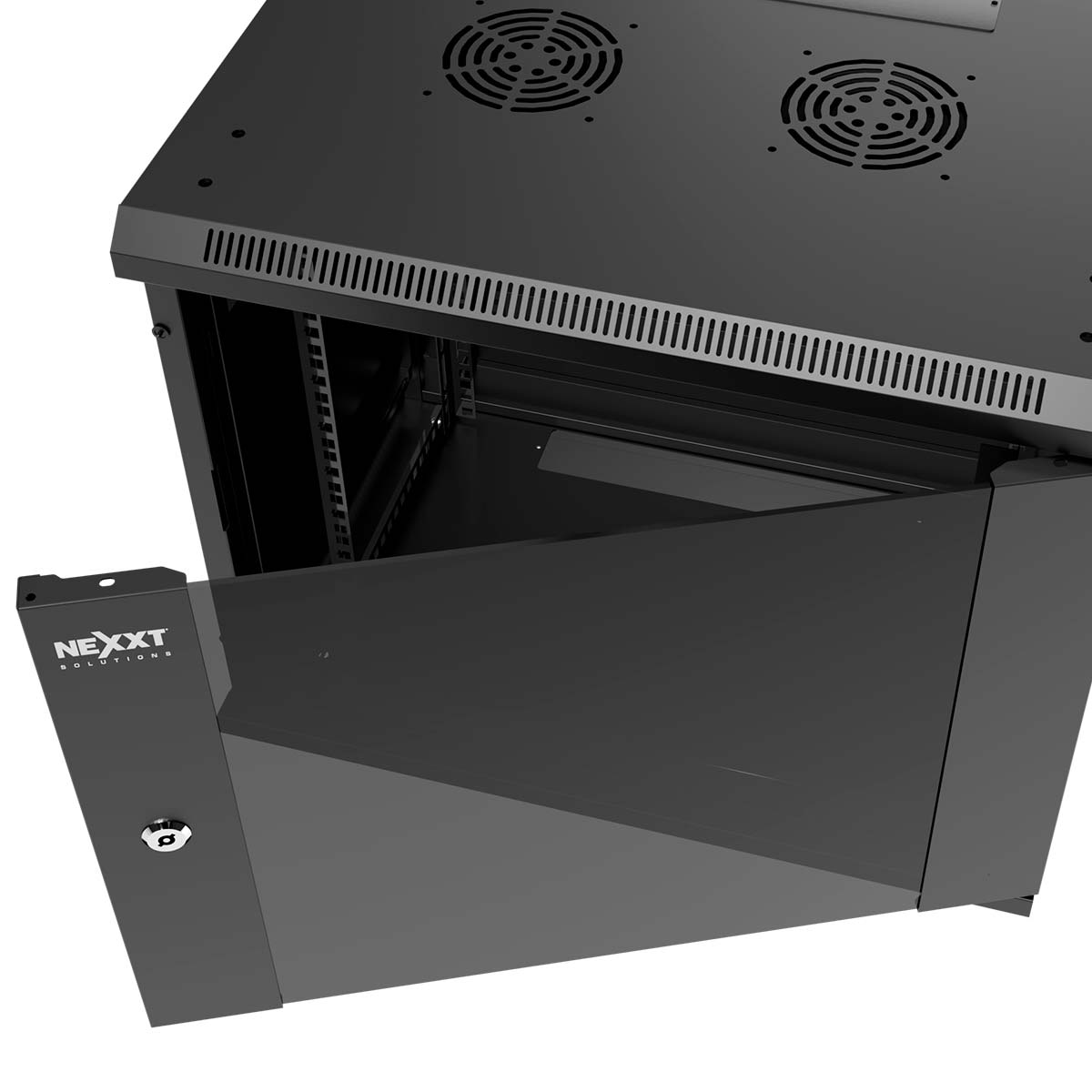

Fans: 2 Slots / 0 Fan

SKD Wall Mount Enclosure

Wall mount enclosures 6U, 9U, 12U, 15U and 18U, fixed, semi-knocked down

MPN: PCRWESKD06U55BK

Available to accommodate EIA industry-standard 19-inch panels
Follows ANSI/TIA/EIA-568 C.2 manufacturing standards and meets ANSI/EIA RS-310-DIt also complies with IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
Two section structure, the main body can turn 120 degree, the turning angle of front door is above 180 degree

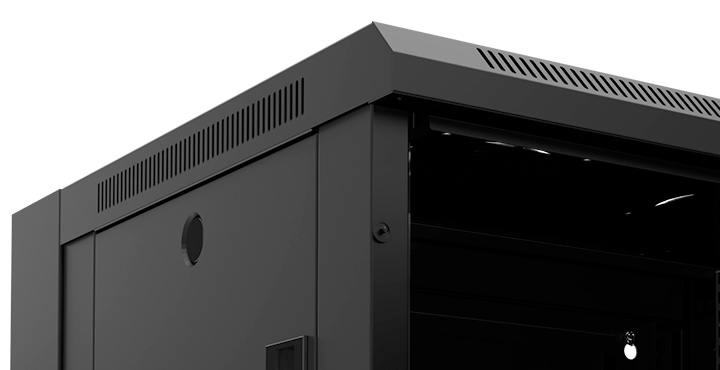

Compact welded frame design, featuring perforated top panel for ventilation
19-inch standard installation provides easy access for management and maintenance
One layer of electrostatic coating protects it against humidity, rust, scratches, peeling, strong acid and alkaline erosion
Black epoxy-polyester hybrid powder paint
For indoor use only, in environmentally controlled areas, may not be used outdoors, in industrial or harsh environments or in plenum spaces
Use with shelves or rails to support small modular network or voice switches routers and other network equipment
Universal horizontal cable manager
Horizontal power strips can be fit

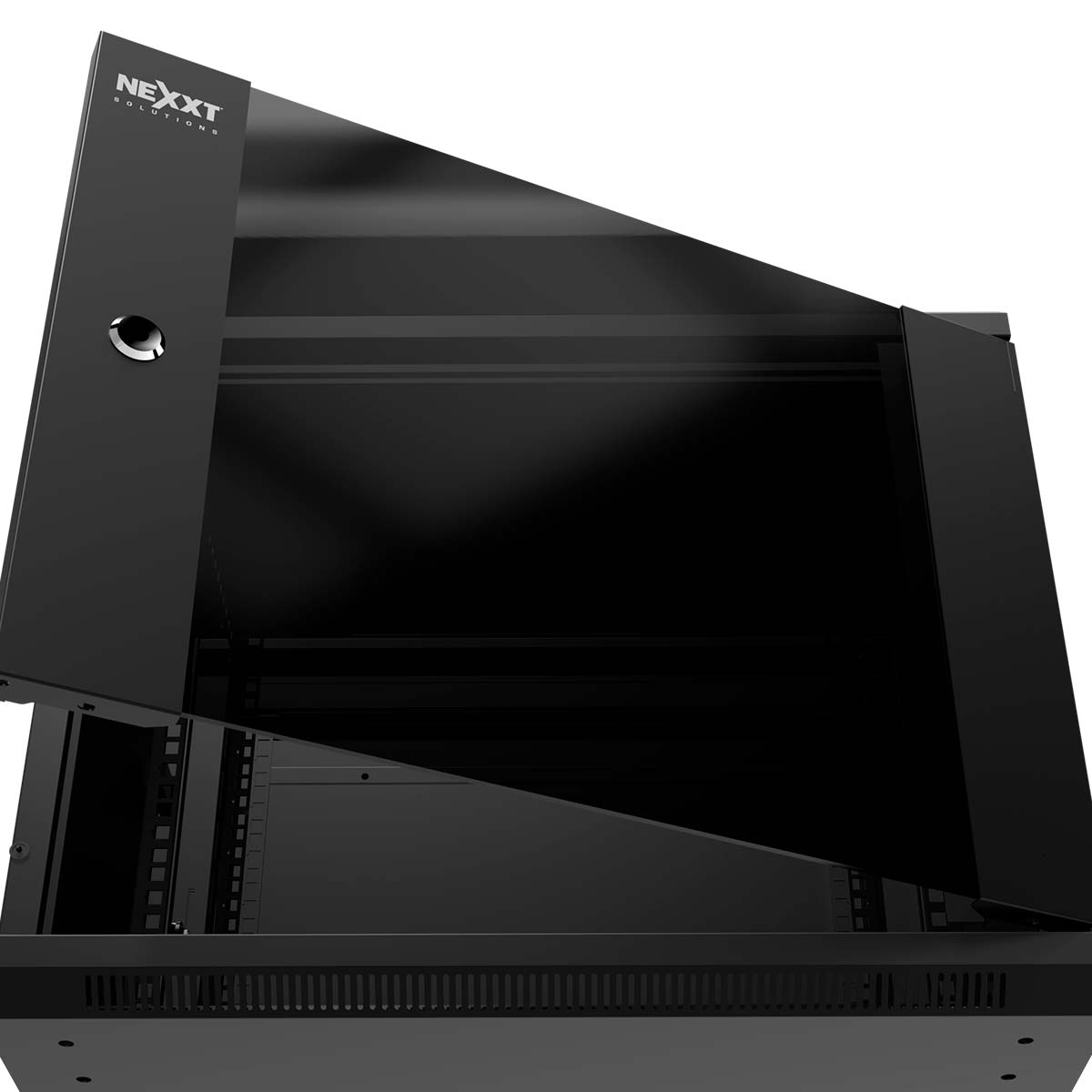

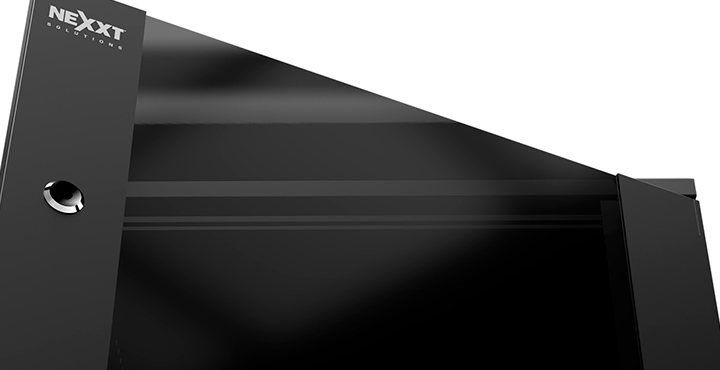

Tempered glass door and rear panel with key lock
Channels for routing cables located on the top and bottom panels
Adjustable vertical rails
Attached grounding bolts
Protection grade: IP20
Max load: 25kg/55lbs

SKD Wall Mount Enclosure

Wall mount enclosures 6U, 9U, 12U, 15U and 18U, fixed, semi-knocked down

MPN: PCRWESKD06U55BK

Wall mount enclosures 6U, 9U, 12U, 15U and 18U, fixed, semi-knocked down (SKD)

Nexxt Solutions semi-knocked down (SKD) hinged wall mount enclosures are ideal for installations were space is limited or where a full cabinet is not required. Our wall mount enclosures are the perfect solution for any 19-inch installation. Commonly used with all patch panels and cable management panels to give installations an organized, protected and professional appearance. These wall mount enclosures come as semi-knock down version. Available with 6, 9, 12, 15 and 18 rack spaces.
