Nexxt - Fixed SKD wall mount enclosure

General Description
Highlights
Overview
Downloads

Fixed SKD Wall Mount Enclosure

Cabinets & Racks / Telecom. Wall Cabinets

General Description
Highlights
Overview
Downloads

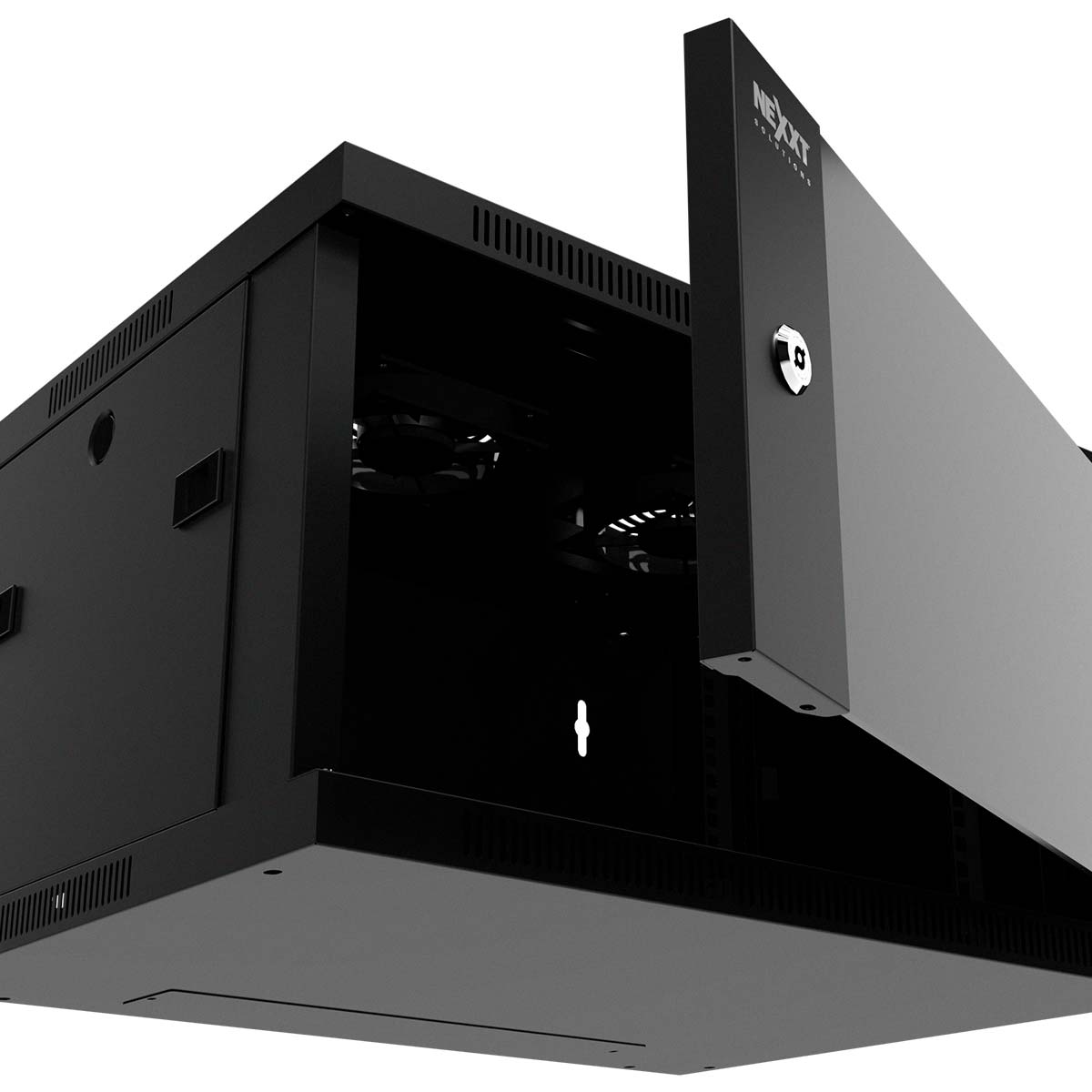

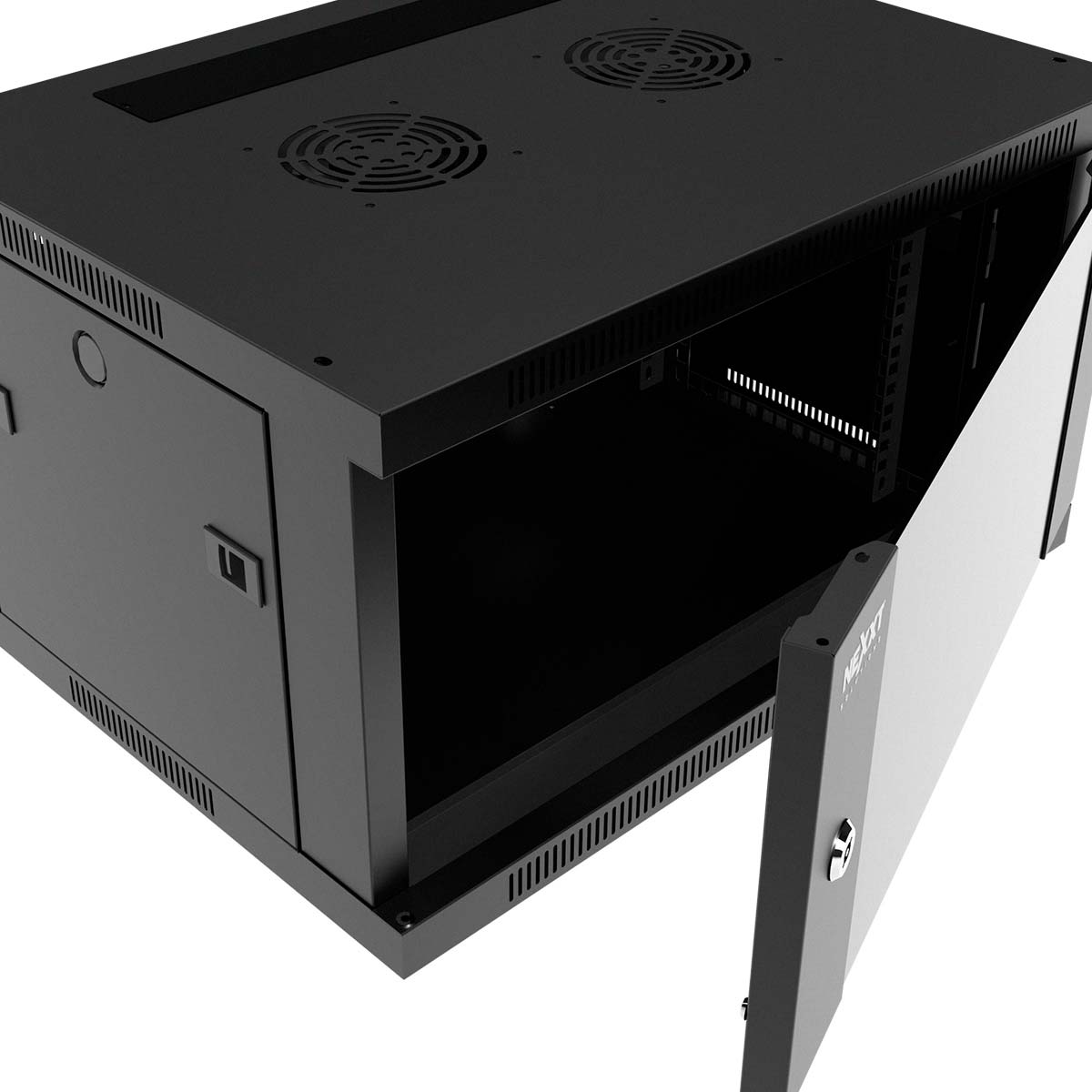

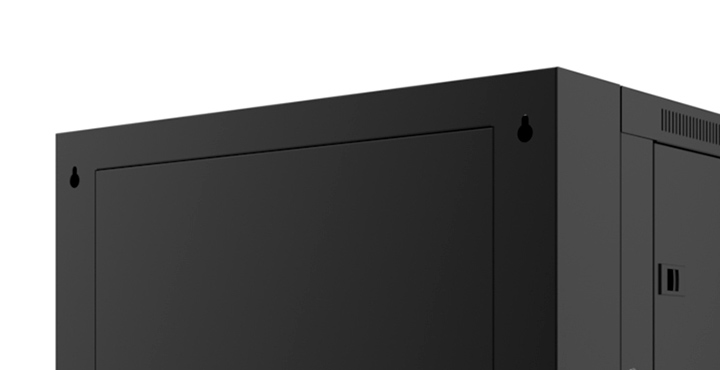

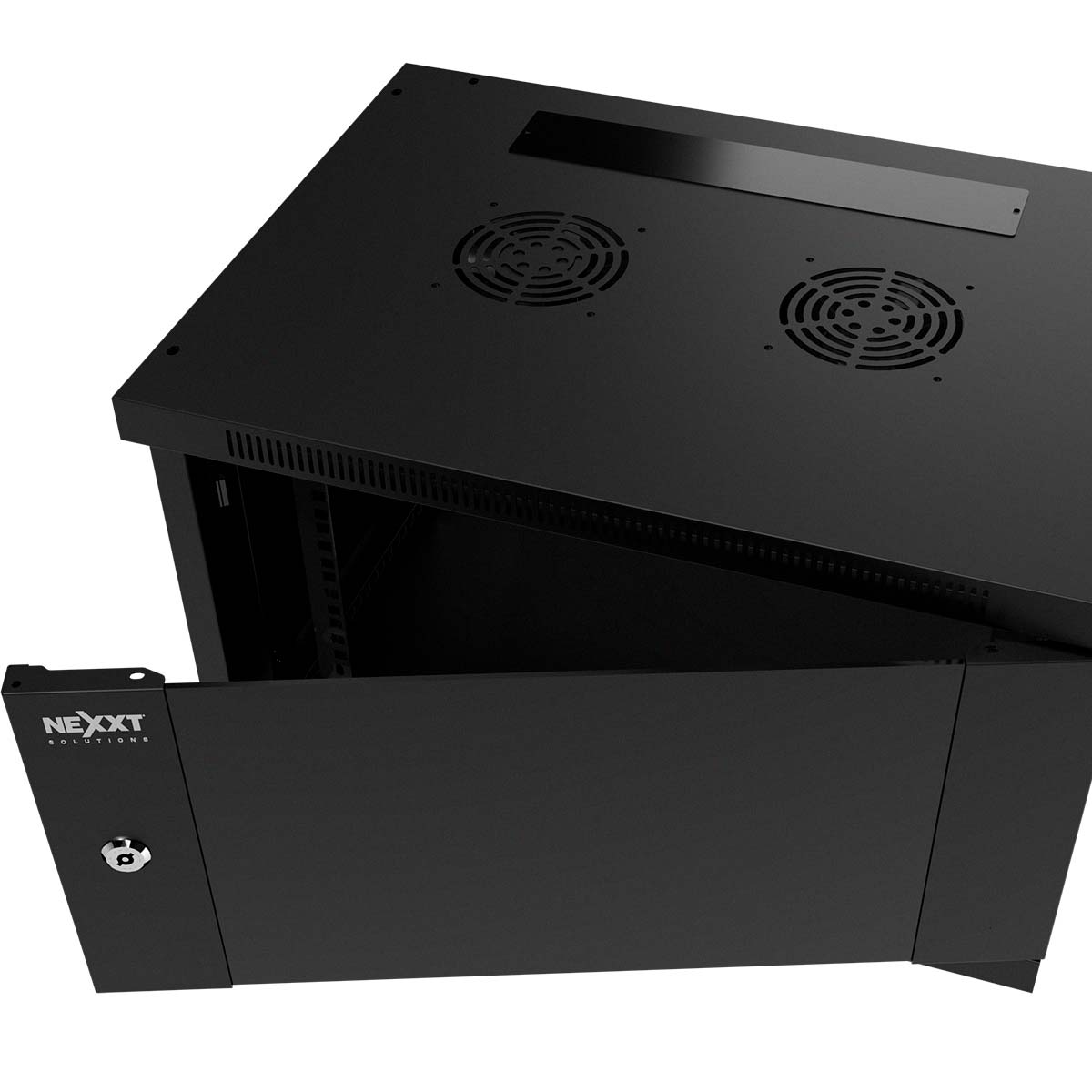

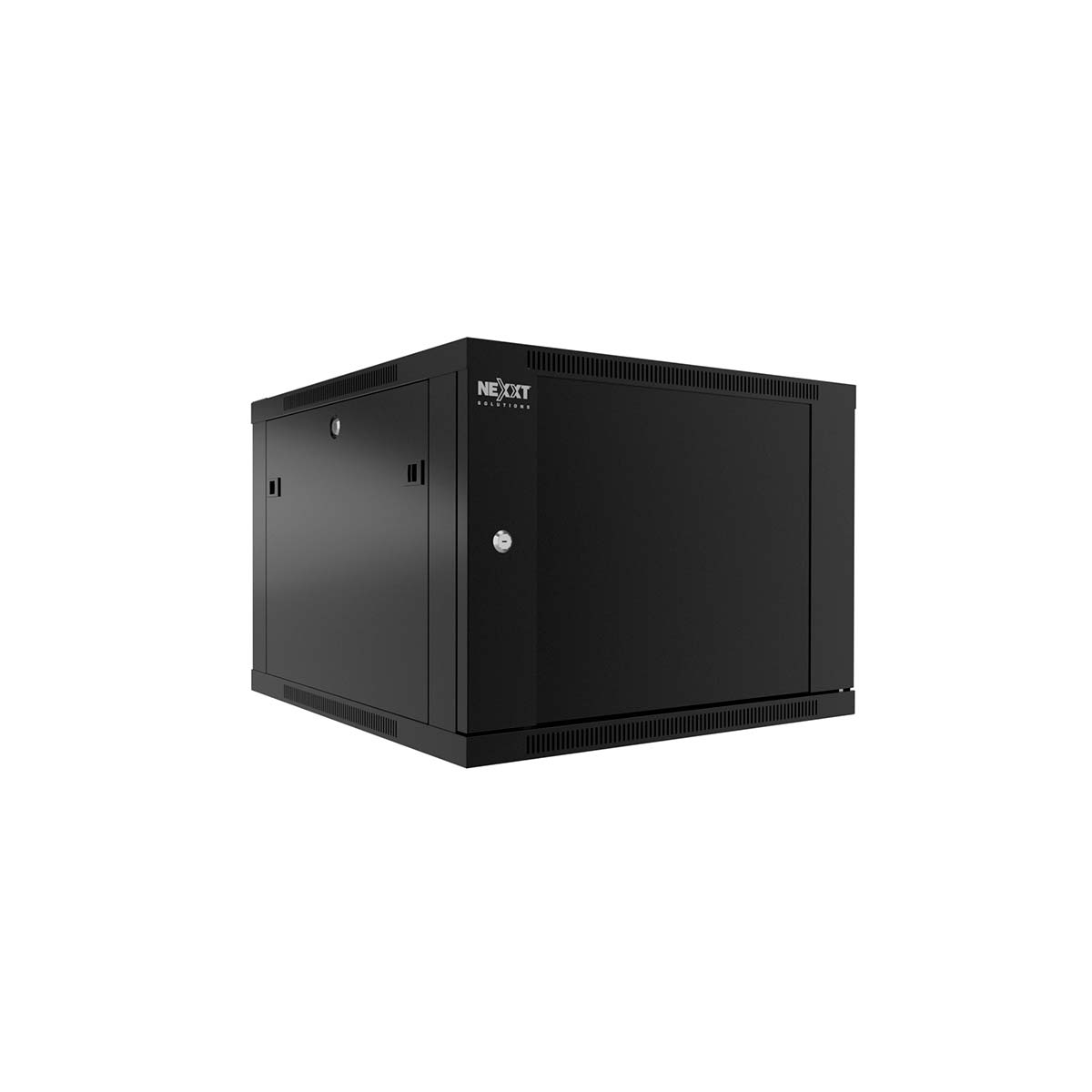

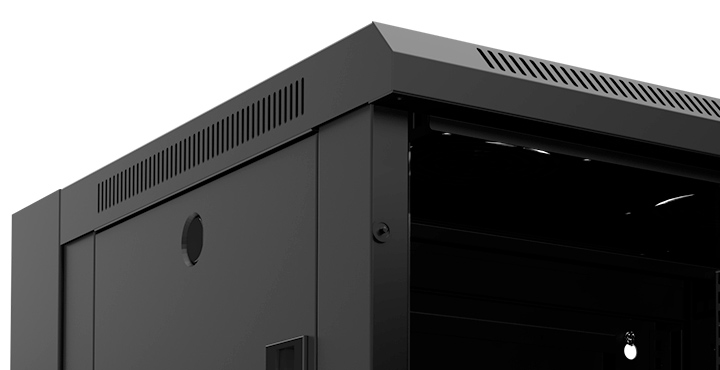

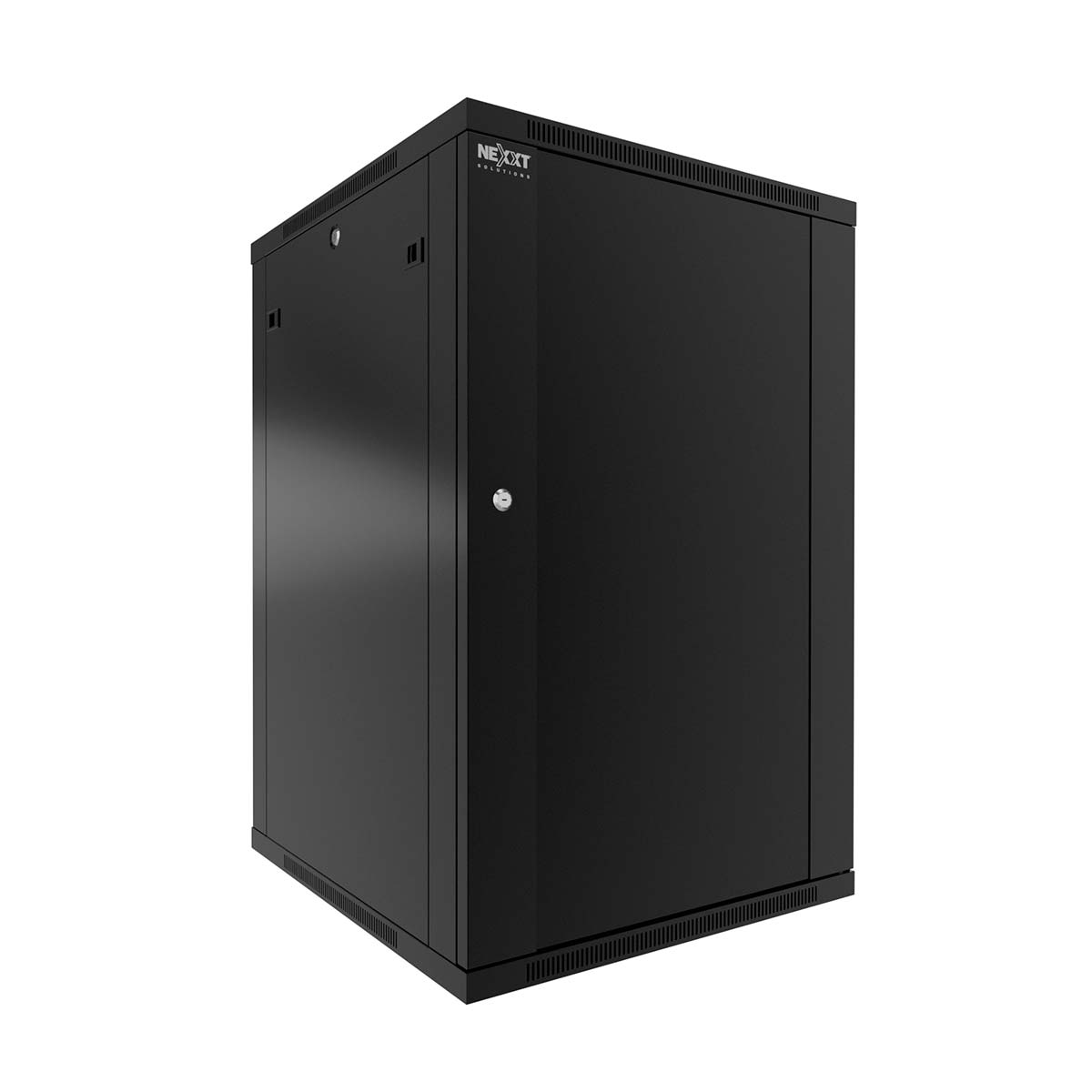

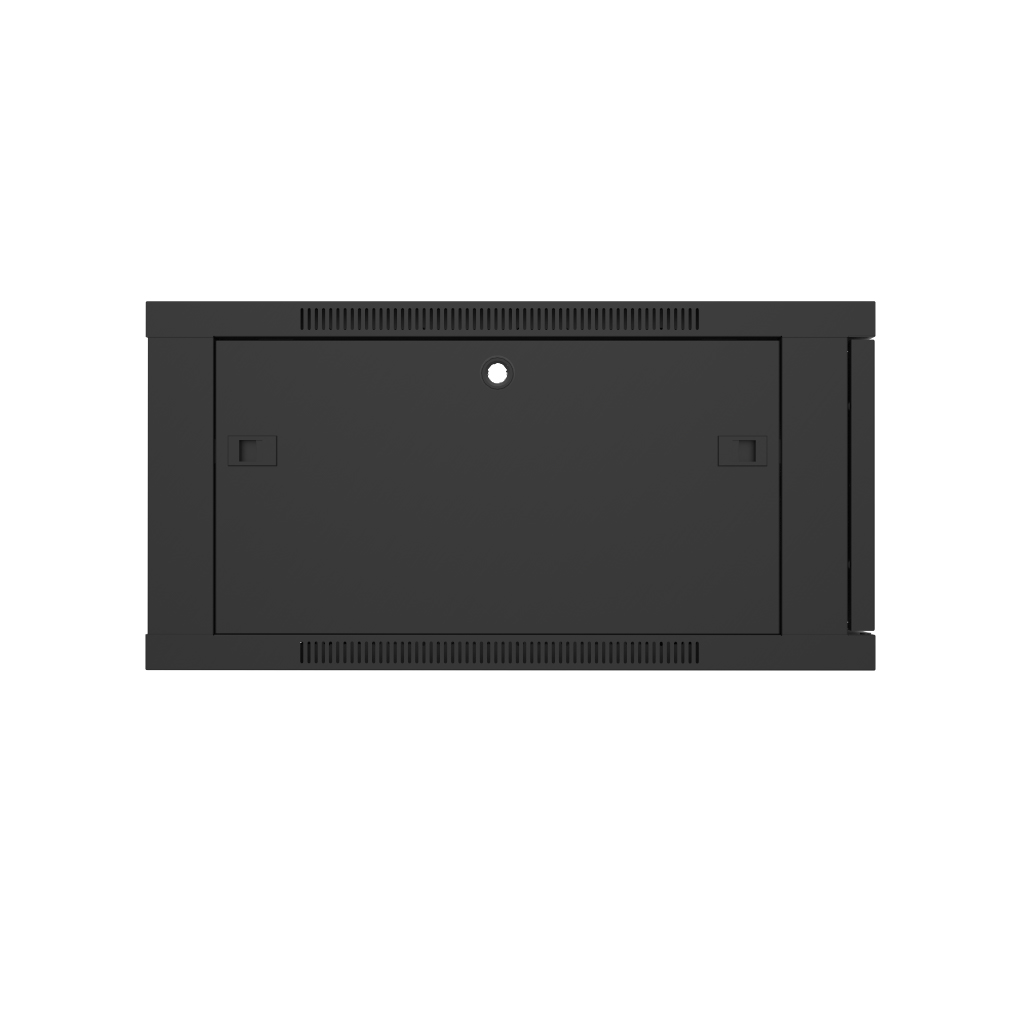

Fixed SKD Wall Mount Enclosure

Fixed wall-mount enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKD04U60FXBK

Rack Units: 12U , 15U , 18U , 4U , 9U , 6U

Size: 600x600mm

Style: Wall Fixed

Max. Load Capacity: 35kg/77lbs

Fans: 2 Slots / 2 Fans

Fixed SKD Wall Mount Enclosure

Fixed wall-mount enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKD04U60FXBK

Available to accommodate EIA industry-standard 19-inch panels
Follows ANSI/TIA/EIA-568 C.2 manufacturing standards and meets ANSI/EIA RS-310-DIt also complies with IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard
Single section structure, the turning angle of front door is above 180 degree
19-inch standard installation provides easy access for management and maintenance
One layer of electrostatic coating protects it against humidity, rust, scratches, peeling, strong acid and alkaline erosion.
Black epoxy-polyester hybrid powder paint.
For indoor use only, in environmentally controlled areas, may not be used outdoors, in industrial or harsh environments or in plenum spaces.
Use with shelves or rails to support small modular network or voice switches routers and other network equipment
Universal horizontal cable manager
Horizontal power strips can be fit

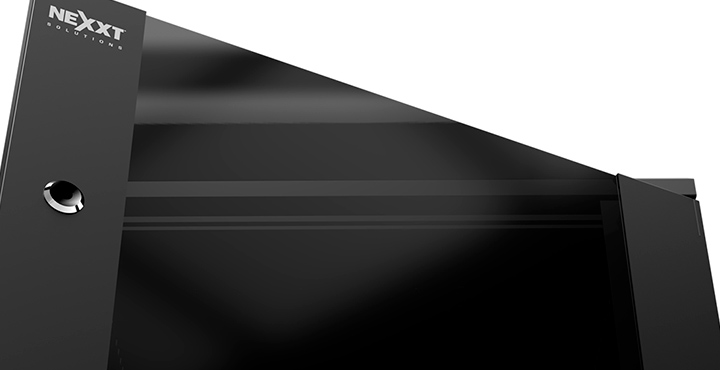

Front glass door and side panels with key lock sets Pathway for routing cables located on the top and bottom panels
Adjustable vertical rails
Attached grounding bolts
Protection grade: IP20
Max load: 132lb

Fixed SKD Wall Mount Enclosure

Fixed wall-mount enclosures 4U, 6U, 9U, 12U, 15U and 18U Semi-knocked down (SKD)

MPN: PCRWESKD04U60FXBK

Fixed wall-mount enclosures 4U, 6U, 9U, 12U, 15U and 18USemi-knocked down (SKD)

Nexxt Solutions semi-knocked down (SKD) fixed wall mount enclosures are ideal for installations were space is limited or where a full cabinet is not required. Our wall mount enclosures are the perfect solution for any 19-inch installation. Commonly used with all patch panels and cable management panels to give installations an organized, protected and professional appearance. These wall mount enclosures come as semi-knock down version. Available with 4, 6, 9, 12, 15 and 18 rack spaces.
